Gen II Vacuum – Slip Prevention

Description

A portable industrial vacuum designed to keep a range of working areas clean, including work floors, components and sub-structures, with a high-pressure wash gun to assist in equipment and Shaker Screen Cleaning. It prevents:
  • Dirty working surfaces on rigs, shops and other spaces making for unsafe and non-efficient operation
  • Loss of Drilling Fluids

Additional information

Benefit(s)

Efficiently cleans a wide variety of surfaces and areas
Collects both fluids and semi-fluids
Simple to operate with low maintenance
Recapture of fluids = Savings to the customer
Manual Operation of both systems (Vacuum and Wash)
High fluid level protection to prevent overfill of the collection tank
5 gallon oil tank with low level protection to prevent dry running the Vacuum Pump
Primary and Secondary vacuum pump protection installed
Rugged Structural Steel Skid with containment (L90xW51xH81) inches
Empty unit weight 4500 lbs (2042kg)
Max Gross Weight 6500 lbs (2849 kg)
Fork Pockets for easy loading and unloading
Engineered and Certified Sling lifting lugs (tested to 13000 lbs)
300 Gallon Collection Tank (tank is tested to 25 psi with test certificate and vessel tag)
Pressure and Suction Relief Valves installed and Preset to operating condition
Calibrated 0-30 PSI/0-30HG Gauge (w/Certificate of Calibration)
Nema 7 CID2 Rated Control System
Phase Monitor with fault lamp (to ensure proper pump rotation)
CID2 rated Cable and Glands
Independent Control operators for both systems
Color

Green
Additional Features

Wash System
2000 PSI Max @ 4 GPM (pressure set @ 800 psi)

BALDOR – 5hp 460v 3ph CID2 Motor

General Pump – W2035 66 series

36' Gun-Lance c/w 50ft 4000 psi 3/8" hose

Nozzle ¼” meg 1505 (15° spray, other angles available)

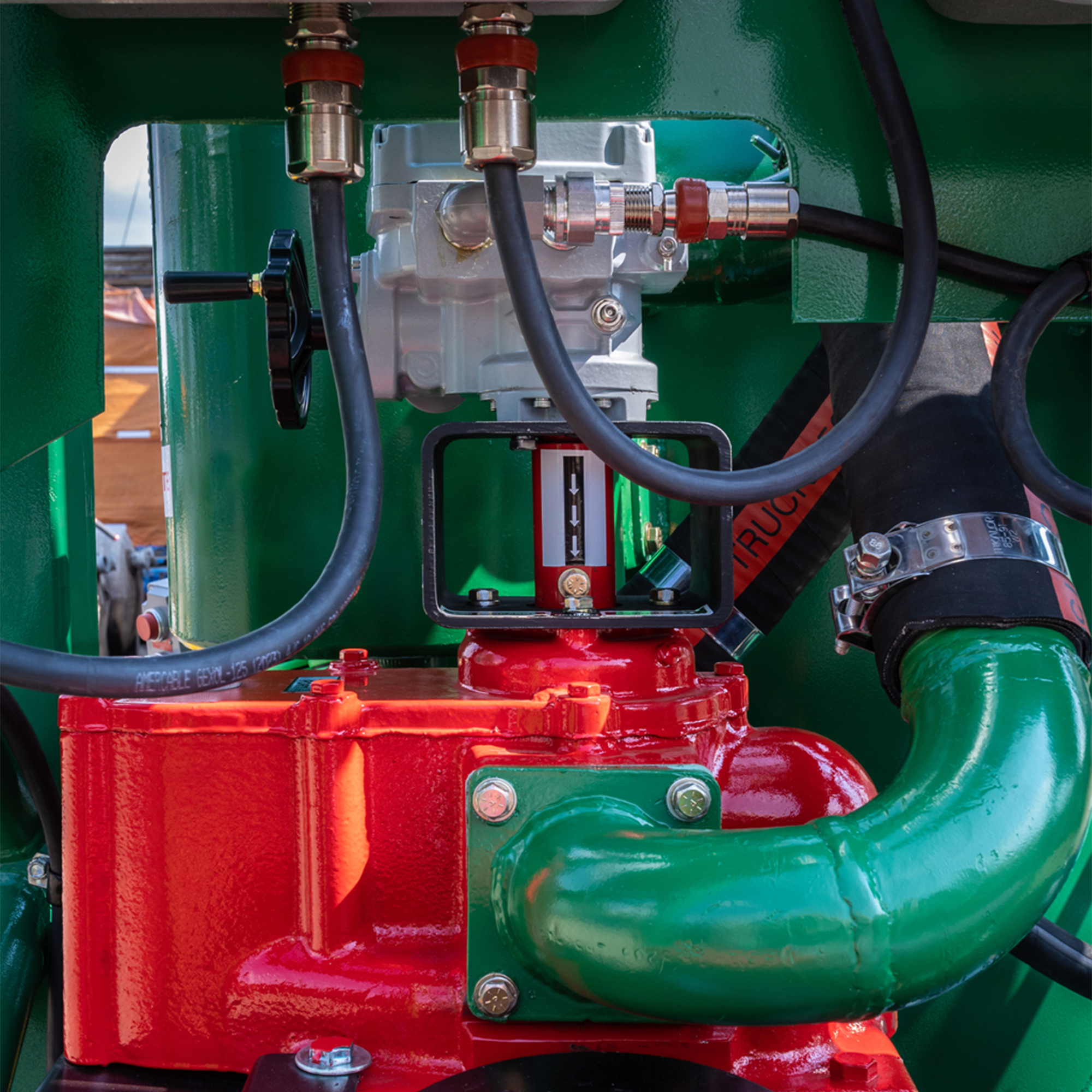

Vacuum System
CFM: 259 Fruitland RCF 370 LU

System size: 3"

Nominal operating RPM: 1200

Max Discharge Pressure: 15psi

Max Suction Pressure: 21 HG

Tech Top, 20 HP 1760 RPM

50 degree Celsius Temp Code

CID2 Rated

480 Volt 60HZ
