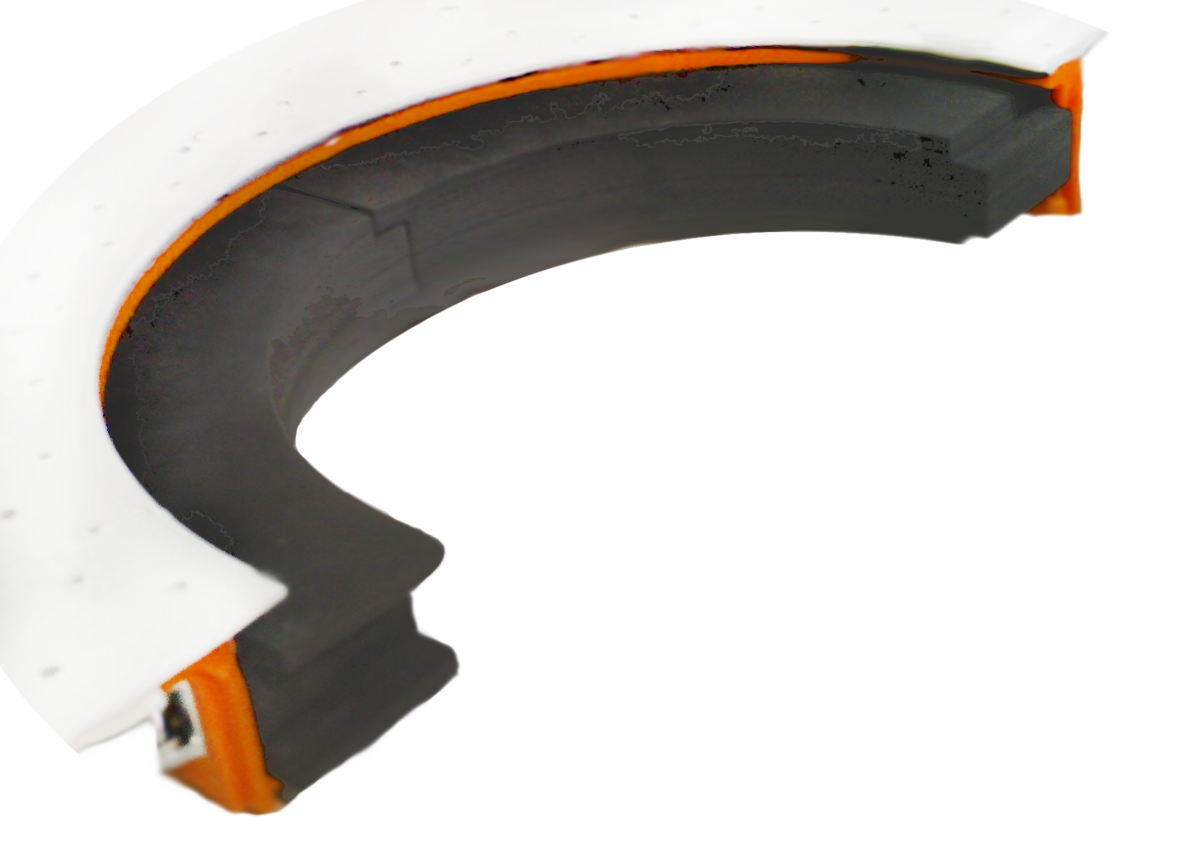

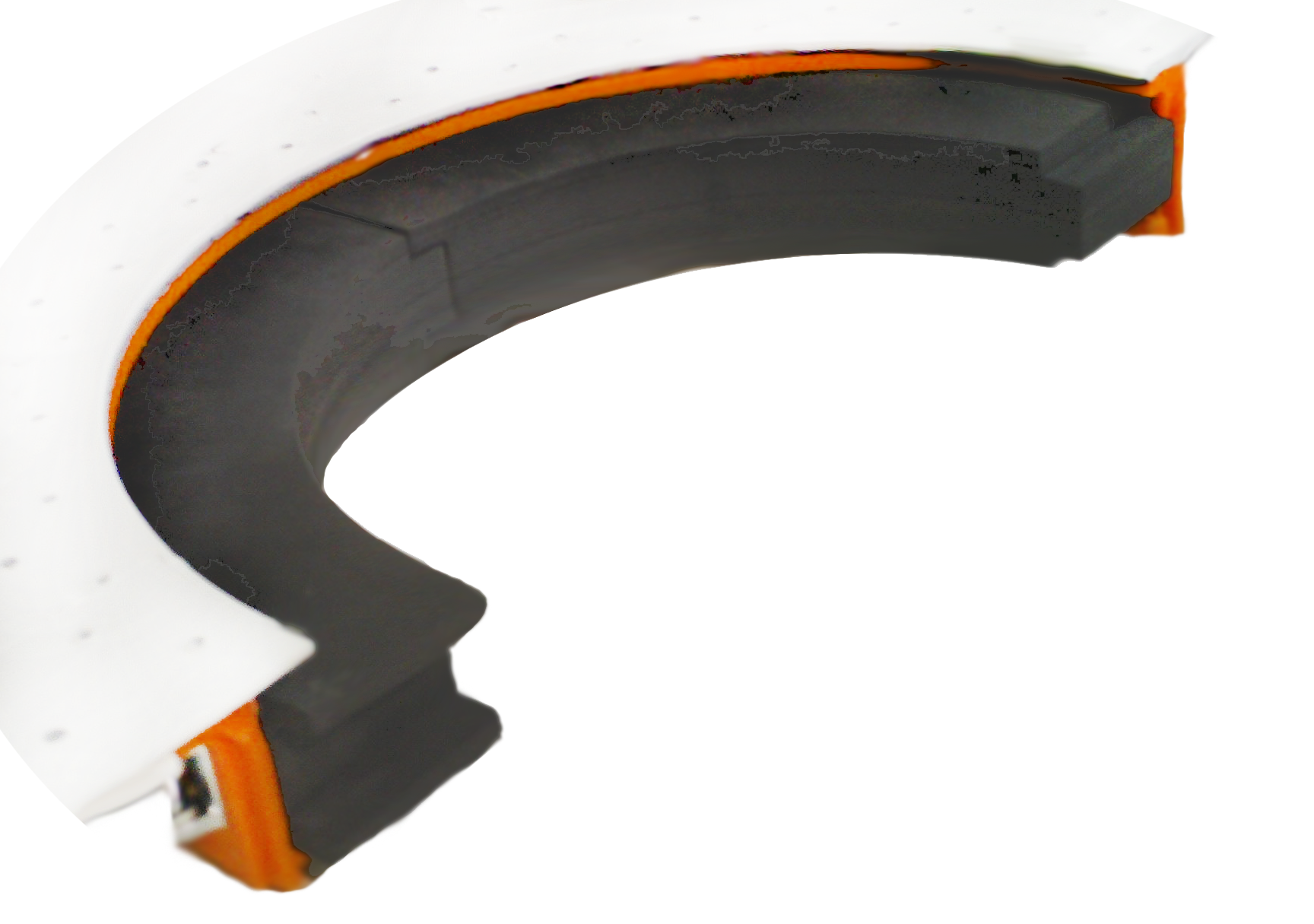

H Seal – Leak Proof

Description

Allows the 2nd Stage Low Profile Load Rated Katch Kan™ to fit all B.O.P/rotating heads sizes and configurations

Features
Sizes from 7 1/16” to 21 1/4”
Custom as per client request based on annular circumference normally forannular installs (for example 2x4x166”, 1 3/8x4x166”, 1 5/8x4x166”)



 Stack Size Pressure
Rating (lbs) 		Flange OD Thickness Length Height LowPro Part #
7 1/16” 3000 15” 1 1/2” 52” 4” 17” KK2-HS-7-3M-17
7 1/16” 5000 15 1/2” 1 1/4” 52 3/4” 4” 17” KK2-HS-7-5M-17
7 1/16” 3000 15” 6” 66” 4”” 26” KK2-HS-7-3M-26
7 1/16” 5000 15 1/2” 5 3/4” 66 3/4” 4” 26” KK2-HS-7-5M-26
7 1/16” 10000 18 7/8” 4 1/8” 72” 4” 26” KK2-HS-7-10M-26
9” 3000 18 1/2” 4 1/4” 71 1/2” 4” 26” KK2-HS-9-3M-26
9” 5000 19” 4” 72 1/2” 4” 26” KK2-HS-9-5M-26
11” 3000 21 1/2” 2 3/4” 76 1/4” 4” 26” KK2-HS-11-3M-26
11” 5000 23” 2” 78 1/2” 4” 26 KK2-HS-11-5M-26
11” 10000 25 3/4” 5/8” 83” 4” 26 KK2-HS-11-10M-2
13 5/8” 3000 24” 1 1/2” 80 1/8” 4” 26 KK2-HS-13-3M-26
13 5/8” 5000 26 1/2” 1/4” 84” 4” 26 KK2-HS-13-5M-26
11” 10000 25 3/4” 5 3/4” 101” 6” 36” KK2-HS-11-10M-3
11” 15000 32” 2 5/8” 110” 6” 36” KK2-HS-11-15M-36
13 5/8” 5000 26 1/2” 5 1/2” 102” 6” 36” KK2-HS-13-5M-36
13 5/8” 10000 30 1/4” 3 1/2” 108” 6” 36” KK2-HS-13-10M-3
13 5/8” 15000 34 7/8” 1 3/16” 115” 6” 36” KK2-HS-13-15-36
16 3/4” 3000 27 3/4” 4 3/4” 104” 6” 36” KK2-HS-16-3M-36
16 3/4” 5000 30 3/8” 3 1/2” 108” 6” 36” KK2-HS-16-5M-36
20 3/4” 3000 33 3/4” 1 3/4” 113” 6” 36” KK2-HS-20-3M-36
21 1/4” 2000 32” 2 5/8” 110” 6” 36” KK2-HS-21-2M-36

Additional information

Part number

KK2-HS-7-3M-17, KK2-HS-7-5M-17, KK2-HS-7-3M-26, KK2-HS-7-5M-26, KK2-HS-7-10M-26, KK2-HS-9-3M-26, KK2-HS-9-5M-26, KK2-HS-11-3M-26, KK2-HS-11-5M-26, KK2-HS-11-10M-2, KK2-HS-13-3M-26, KK2-HS-13-5M-26, KK2-HS-11-10M-3, KK2-HS-11-15M-36, KK2-HS-13-5M-36, KK2-HS-13-10M-3, KK2-HS-13-15-36, KK2-HS-16-3M-36, KK2-HS-16-5M-36, KK2-HS-20-3M-36, KK2-HS-21-2M-36

Documents

Product Info Sheet H Seal – English

Product Info Sheet H Seal – Spanish

Product Info Sheet H Seal – Arabic
